Ithaca Audio/ Intersystems - Front panel Board.
This was the front panel board Intersystems used in their DSP systems.

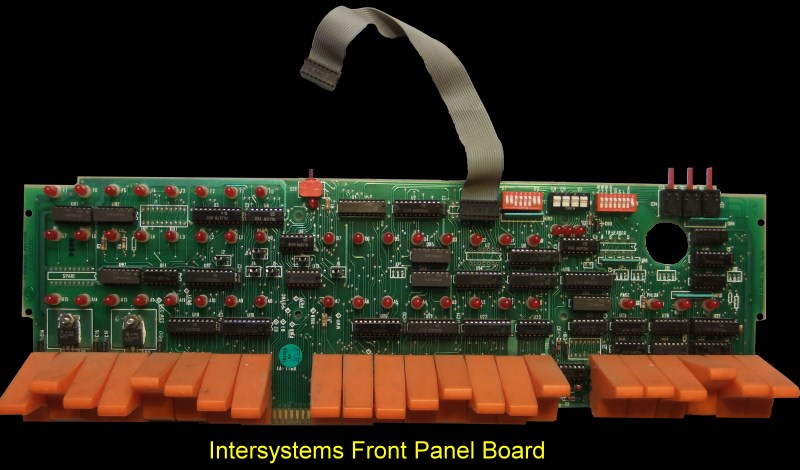

Intersystems FPB



 This board had more useful diagnostic tests than the IMSAI, Altair or Wamco boards.  The large hole on the right was for a rotary switch.

The fairly detailed manual can be obtained from here.
